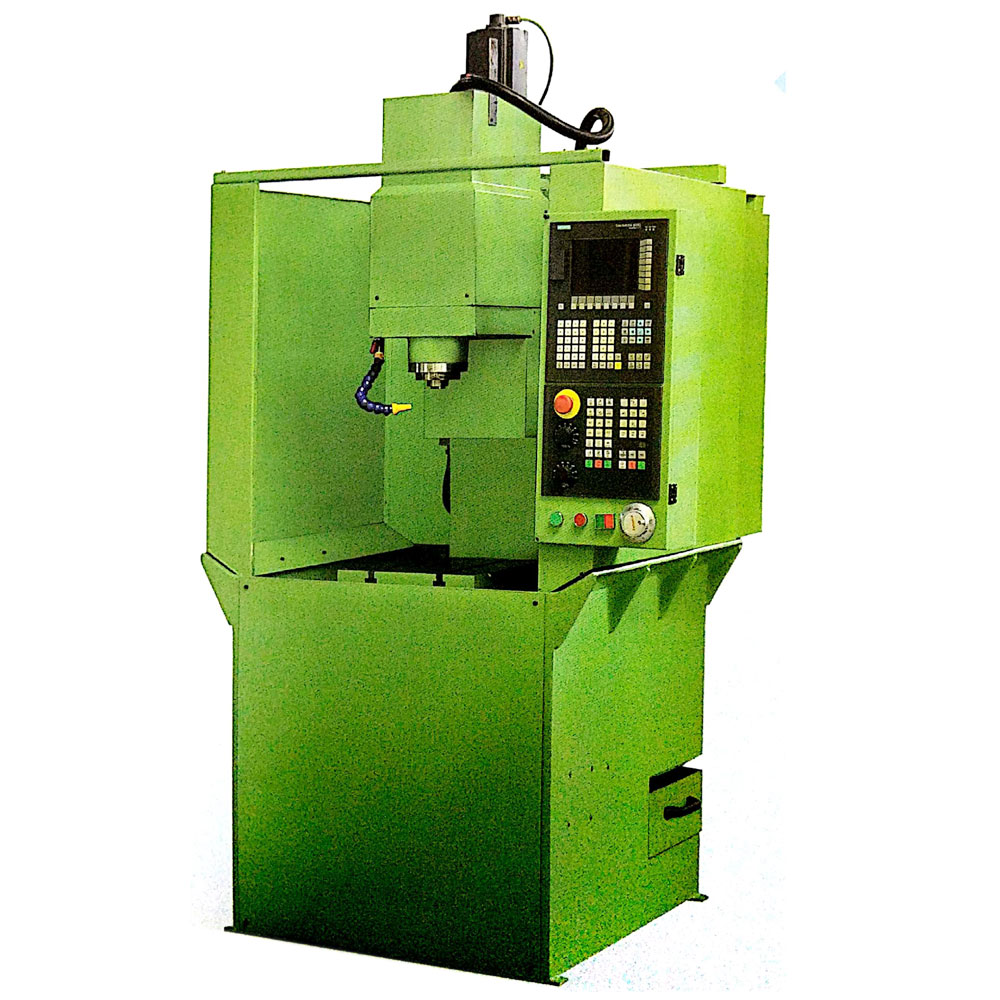

CNC Drill Tap Machine
CNC Drill Tap Machine
Specification
Applications
Drilling, Chamfering, Reaming, Hole Milling.
Spot Facing ,Burnishing ,Countersinking, Counter boring.
For Steel or harden materials.
For aluminum or soft material.
Features
Rigid construction
Drilling cycle (Rapid forward-feed-dwell-rapid return).
Spindle drive through timing belt and inter changeable pulley sets.
Wood packing cycle for deep hole drilling.
| Max.Drilling Capacity | R-7150 | R-9150 | CNC | CNC-35 |
| Wood Pecking Cycle | O25mm | 035mm | 20 Ton | 20 Ton |
| Spindle Taper | yes* | yes* | yes* | yes* |
| Spindle Travel | MT3.NT30 | MT3.NT40 | 176 mm | 226 mm |
| Spindle Speed 3S | 150mm | 150mm | 150mm | 150mm |
| Throat | 500-1000-1500 | 100-200-300 | 500-1000-1500 | 100-200-300 |
| Column Diameter | 230mm | 260mm | 230mm | 260mm |
| Motor HP | O102mm | O115mm | O102mm | O115mm |
| 2HP | 3HP | 2HP | 3HP |

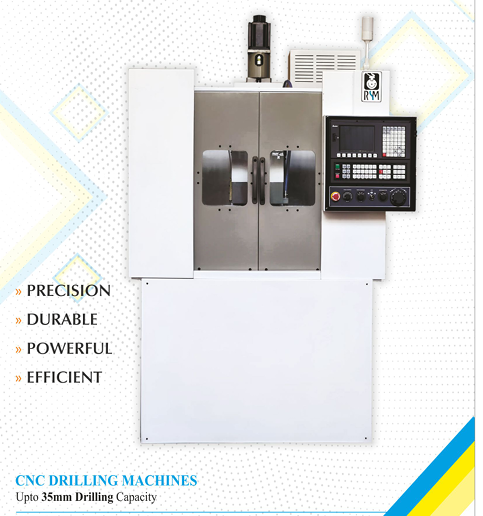

Automatic Hydraulic Drilling
Applications
Drilling, Chamfering, Reaming, Hole Milling.
Spot Facing ,Burnishing ,Countersinking, Counterboring.
For Steel or harden materials.
For aluminum or soft material.
Features
Rigid Construction
Drilling Cycle (Rapid forward-feed-dwell-rapid return).
Spindle drive through timing belt and inter chargeable pulley sets.
Hydraulic spindle feed, infinitely variable spindle speed.
Peck drilling cycle for deep hole drilling.
| Max. Drilling Capacity | R-7150 | R-9150 | CNC-25 | CNC-35 |
| Wood Pecking Cycle | ∅25mm | ∅35mm | ∅25mm | ∅35mm |
| Spindle Taper | yes* | yes* | yes* | yes* |
| Spindle Travel | MT3.NT30 | MT4.NT40 | ISO-30 | ISO-40 |
| Spindle Speed 3S | 150mm | 150mm | 150mm | 150mm |
| Throat | 500.1000.1500 | 100.200.300 | 500.1000.1500 | 100.200.300 |
| Column Diameter | 230mm | 260mm | 230mm | 260mm |
| Motor HP | ∅102mm | ∅115mm | ∅102mm | ∅115mm |
| 2 HP | 3 HP | 2 HP | 3 HP |
