CNC Turning Center

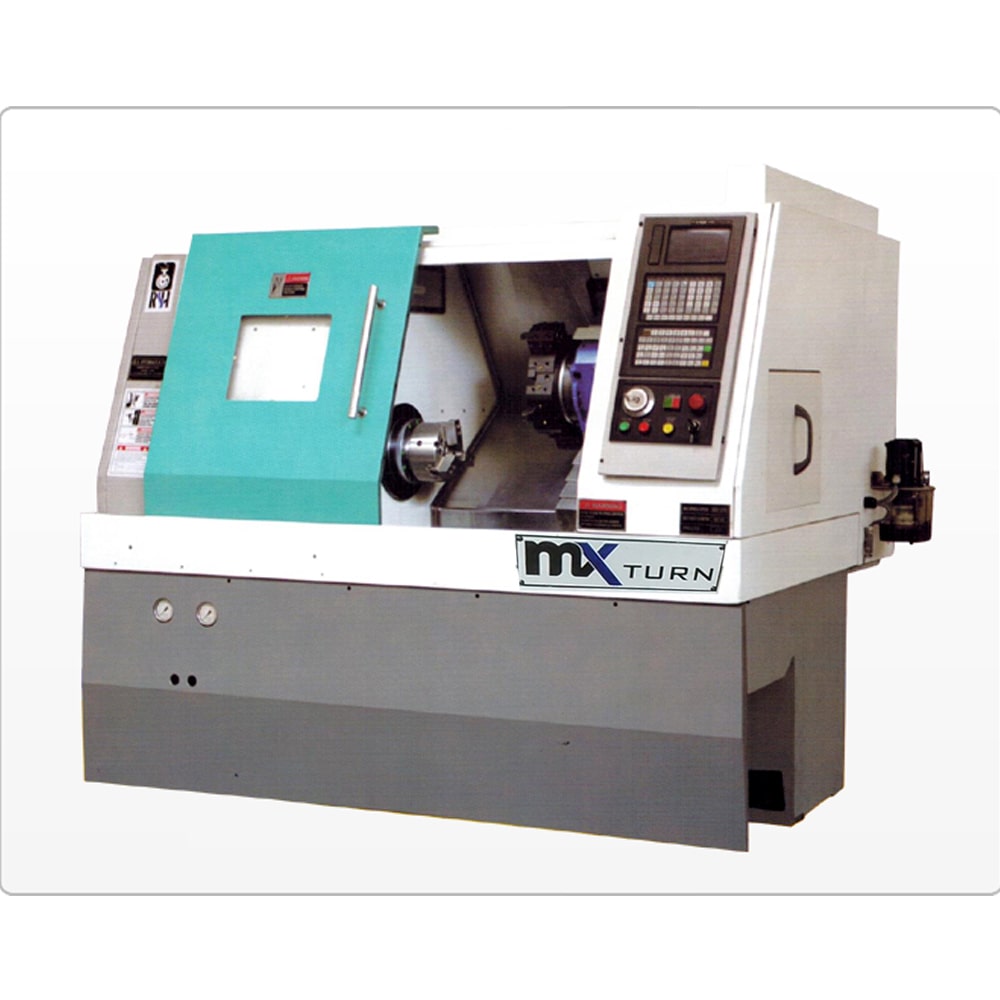

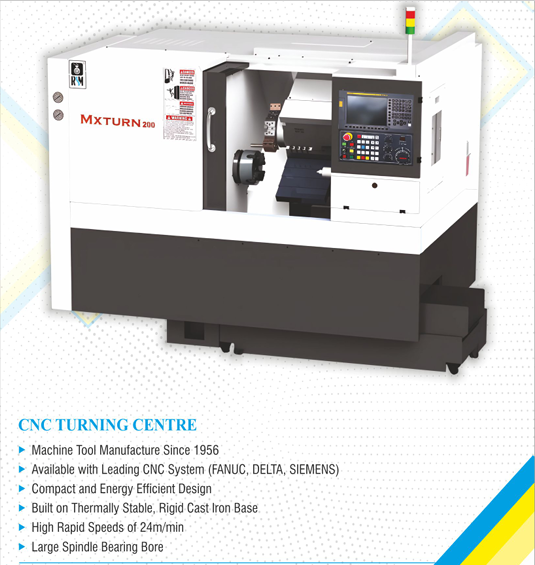

CNC Turning Center MX TURN 165
Specification
| CAPACITY | MX TURN 165 | MX TURN 200 | MX TURN 230 | MX TURN 230L | |
|---|---|---|---|---|---|
| Swing Over Bed | mm | 475 | 500 | 500 | 500 |
| Maximum Turning Dia. | mm | 275 | 300 | 350 | 350 |
| Standard Turning Dia. | mm | 165 | 200 | 230 | 230 |
| Max. Turning Length (with chuck) | mm | 280 | 300 | 500 | 500 |
| Admit Between Centers | mm | 350 | 350 | 600 | 1200 |
| Chuck Size | mm | 170 | 200 | 210 | 210 |
| TRAVERSES | |||||
| Cross (X-Axis) Travel | mm | 175 | 175 | 175 | 175 |
| Longitudinal (Z-Axis ) Travel | mm | 350 | 550 | 550 | 1120 |
| Rapid Feed (X & Z Axis) | m/min | 30/30 | 30/30 | 30/30 | 30/30 |
| MAIN SPINDLE | |||||
| Spindle Motor Power | Cont/30 min. | 5.5/75KW | 7.5/11KW | 7.5/11KW | 7.5/11KW |
| Spindle Bore | mm | 45 | 45 | 56 | 56 |
| Spindle Nose | A2-5 | A2-5 | A2-6 | A2-6 | |
| Max Bar Capacity | mm | 38 | 38 | 48 | 48 |
| Spindle Speed Range | rpm | 50-4500 | 50-4000 | 50-3500 | 50-3500 |
| Full Power Speed Range | rpm | 100-3300 | 1000-3300 | 1000-3000 | 1000-3000 |
| TAIL STOCK | |||||
| Quill Dia. | mm | 80 | 80 | 80 | 80 |
| Quill Taper | mm | MT4 | MT4 | MT4 | MT4 |
| Quill Stroke | mm | 100 | 100 | 100 | 100 |
| Base Travel | mm | 250 | 250 | 400 | 400 |
| TURRET | |||||
| No. of Tool Position | No. | 8 | 8 | 8 | 8 |
| Tool Shank Size | mm | 25x25 | 25x25 | 25x25 | 25x25 |
| Max. Boring Bar Dia. | mm | 40 | 40 | 40 | 40 |
| Positioning Uncertainty | 0.007 | 0.007 | 0.007 | 0.007 | |
| Repeatability | mm | 0.003 | 0.003 | 0.003 | 0.003 |
| OTHER | |||||
| Weight (Approx.) | Kgs. | 3400 | 3500 | 3900 | 4300 |
| Dimension (Approx.) | (L x W x H) | 2300x1450x1800 | 2300x1450x1800 | 2600x1450x1800 | 2600x1450x1800 |
