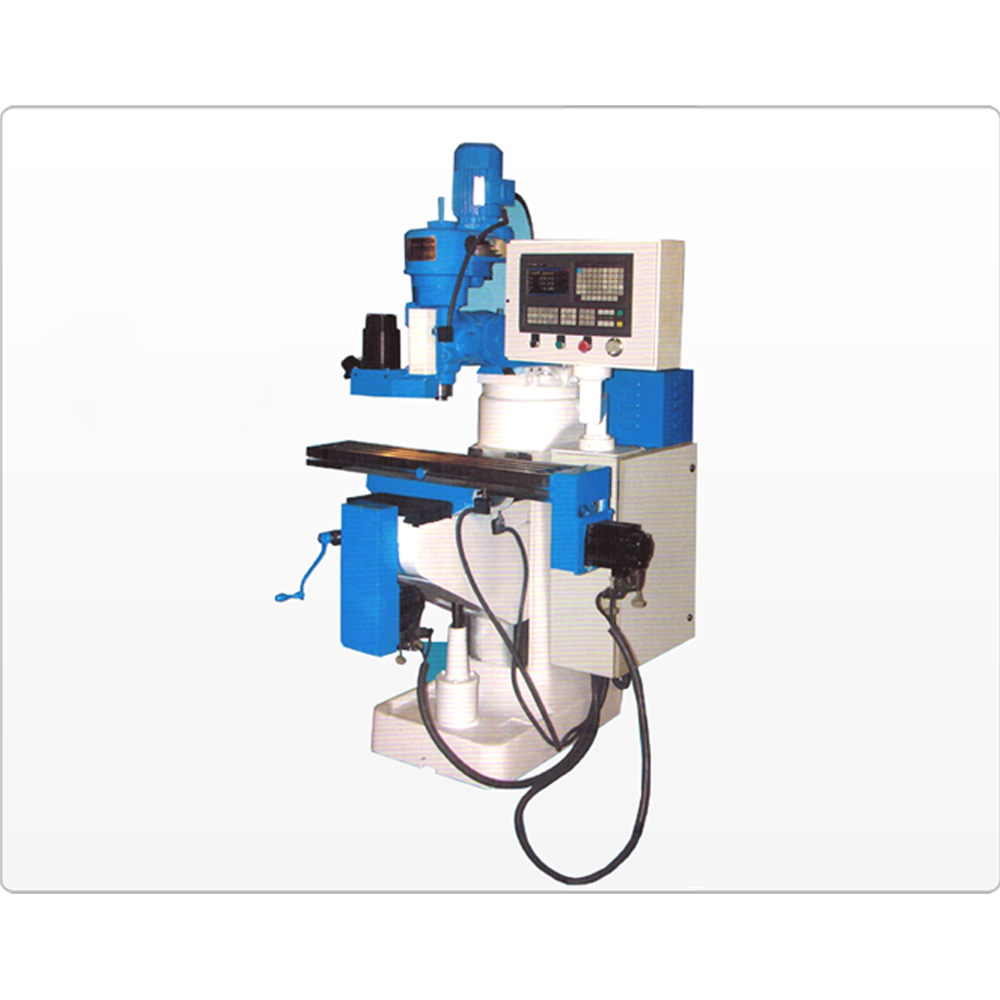

CNC Vertical Turret Ram Type
CNC Vertical Turret Ram Type
Specifications
| CAPACITY | M-1 CNC | |
|---|---|---|
| Table | mm | 230x1067 |
| T-Slot | mm | 3x16 |
| Table Load | kg | 200 |
| X-Axis Travers | mm | 560 |
| Y-Axis Travers | mm | 300 |
| Z-Axis Travers (Quill Move) | mm | 127 |
| Knee Vertical Travel | kg | 380 |
| Ram Travel | kg | 315 |
| Distance from Spindle to Table | kg | 0-380 |
| Milling Head | ||
| 3 Step AC Drive | RPM | 100-4500 |
| Spindle | ISO-40* | |
| Motor Power | HP | 3 |
| Head Rotate | Deg. | 90° |
| Tilting | Deg. | 45° |
| CNC System | GSK 980 MDa |
